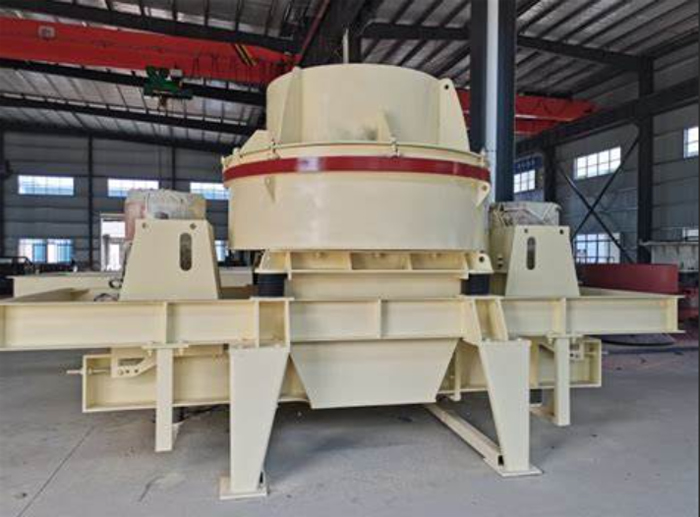

BENO XCVS-5X1280 Vertical Shaft Impact Crusher that has several applications in different industries. The equipment produces cubical-shaped aggregates that are ideal for producing high-strength and lightweight concrete, making sand from crushed stones, and crushing ores for extracting valuable minerals. With the increasing demand for high-quality aggregates, BENO XCVS-5X1280 Vertical Shaft Impact Crushers have become an essential part of the modern-day construction and mining industry.
Increased Throughput: After optimizing the deep cavity rotor, the cavity volume increases and the throughput increases significantly.
Stone-on-Stone Crushing: The “stone on stone” crushing cavity is suitable for all materials, especially highly abrasive materials. During its working process, the cost of wearing parts is reduced and the discharge quality is improved.
Stone-for-Iron Crushing: The “stone-for-iron” crushing cavity is used for processing medium and below abrasive materials with high crushing efficiency.
Feed Inlet Adjustment: The feed inlet adjustment device controls the ratio of the center feed of the equipment and the waterfall feed to increase output, adjust particle shape, and control powder content.
Thin Oil Lubrication: The thin oil lubricated rotor can crush materials with different characteristics and improve the safety of the equipment on the basis of sufficient lubrication.
Imported Bearings and Soft-Start Cabinet: It uses imported bearings and is equipped with a soft-start cabinet to monitor the motor and lubrication station for all-round protection.
BENO XCVS-5X1280 Vertical Shaft Impact Crusher uses a deep cavity rotor, and the material throughput is increased by about 30% compared with the traditional equipment. The unique cavity design can greatly improve the material utilization rate and reduce the wear of the equipment.
BENO XCVS-5X1280 Vertical Shaft Impact Crusher uses high-speed impact crushing, and the crushing ratio is large. Therefore, the material can be broken into small pieces with a cubic shape, which is very suitable for the production of high-quality aggregates.
BENO XCVS-5X1280 Vertical Shaft Impact Crusher uses high-precision rotor with high speed and low energy consumption. It can save more than 50% energy compared with traditional equipment, which greatly reduces the production cost.
BENO XCVS-5X1280 Vertical Shaft Impact Crusher is equipped with a hydraulic lifting device, which can provide convenient and quick adjustment of the discharge port. The wearing parts are made of high-quality wear-resistant materials, which can be easily replaced and have a long service life.
BENO XCVS-5X1280 Vertical Shaft Impact Crusher can be used for the production of various types of sand and gravel materials, and can also be used for the production of artificial sand. It is widely used in construction, highway, railway, cement, mining and other industries.
Quarrying and Mining Operations
Construction Industry
Metallurgy Industry
Specification | Processing Capacity（t/h） | Maximum feed size （mm） | Rotational speed（r/min） | Motor power（kw） | Dimension （mm） | Weight（t） | ||
Cascade-center feed（mm） | Full-center feed（mm） | Soft material （mm） | Hard material （mm） | |||||
XCVS-5X1280 | 870-1700 | 435-650 | 60 | 50 | 1070-1330 | 500x2 | 5600*3400*4530 | 33 |
