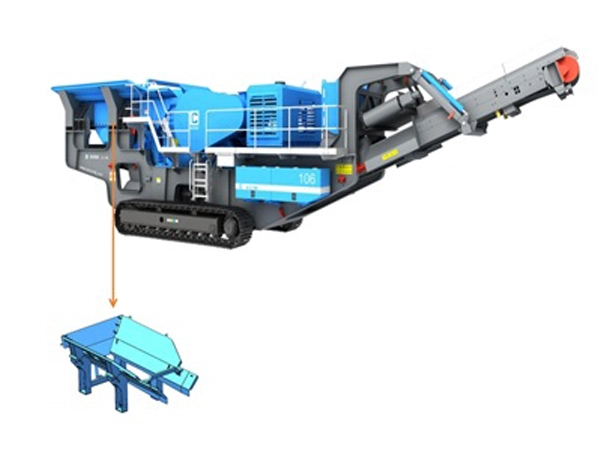

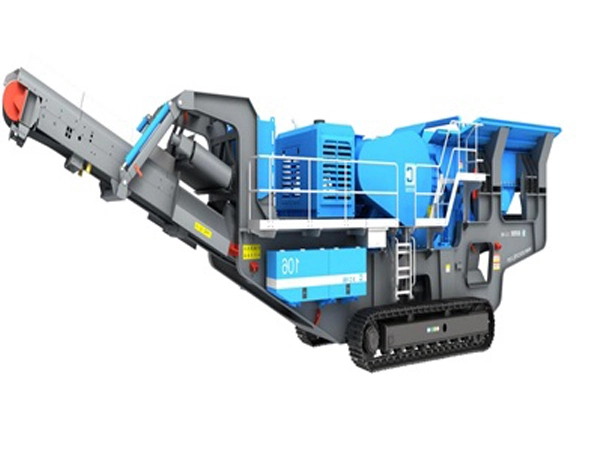

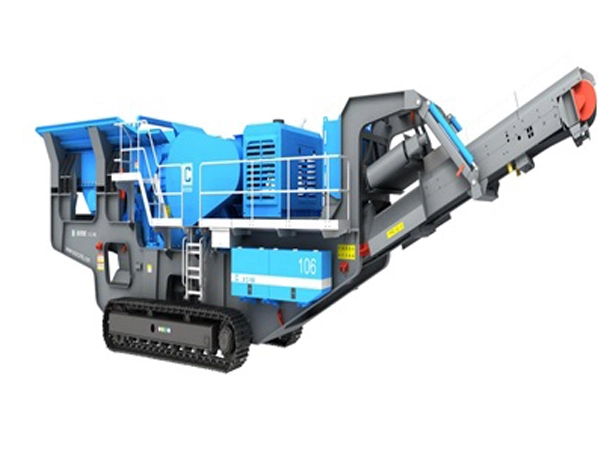

The working principle of XC-106 Crawler Jaw Mobile Crushing Station is to crush materials directly on site. Materials first enter the vibrating feeder and then are sent to the jaw crusher for primary crushing. The crushed materials are transported by belt conveyor for further processing. The station is efficient and flexible, and uses crawlers to quickly transfer sites, providing a convenient and economical solution for on-site crushing.

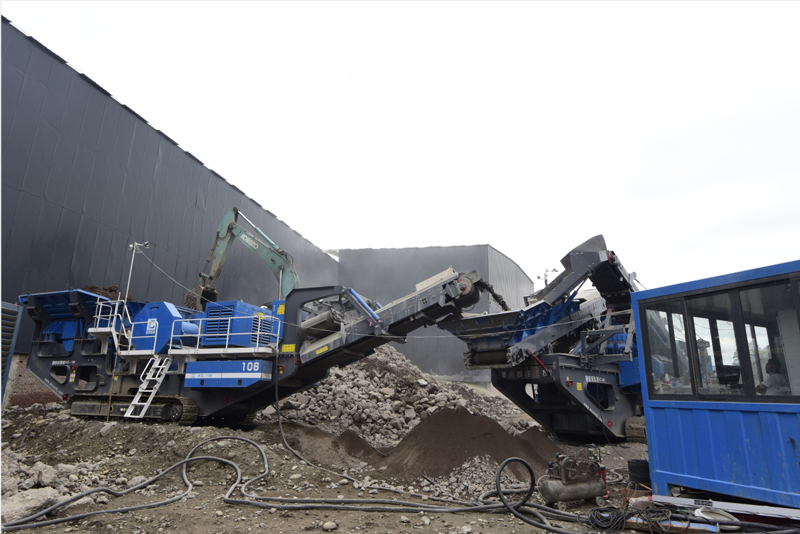

Easy to transport. XC-106 Crawler Jaw Mobile Crushing Station adopts wireless remote control for walking, fast transition, and can adapt to various complex construction environments such as mountains and wetlands.
Long lasting. XC-106 Crawler Jaw Mobile Crushing Station has high fatigue resistance and stronger impact resistance.
High production capacity. XC-106 Crawler Jaw Mobile Crushing Station’s unique cavity design achieves large crushing ratio, high productivity and low energy consumption.
Model | XC-106 |
Total length (mm) | 15140 |
Total Width (mm) | 3061 |
Total height (mm) | 3726 |
Inlet size (mm) | 1060*700 |
Volume (m³) | 6 |
Feeding height (mm) | 3735 |
Discharging height (mm) | 3300 |
Drive mode | Gas-electric hybrid |
Power (kw) | 142 |
Weight (kg) | About 47000 |
