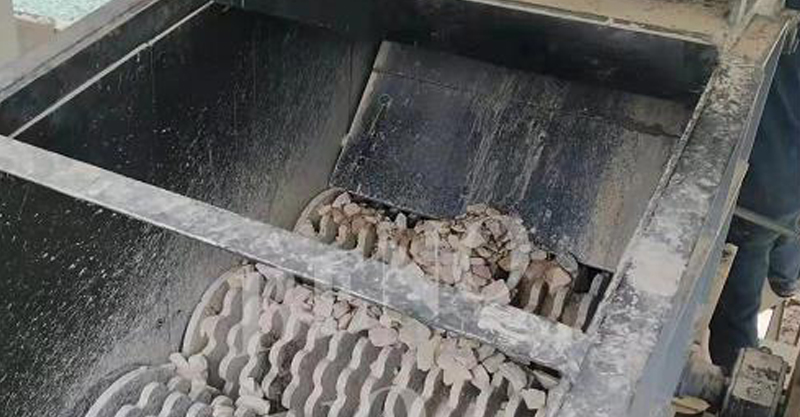

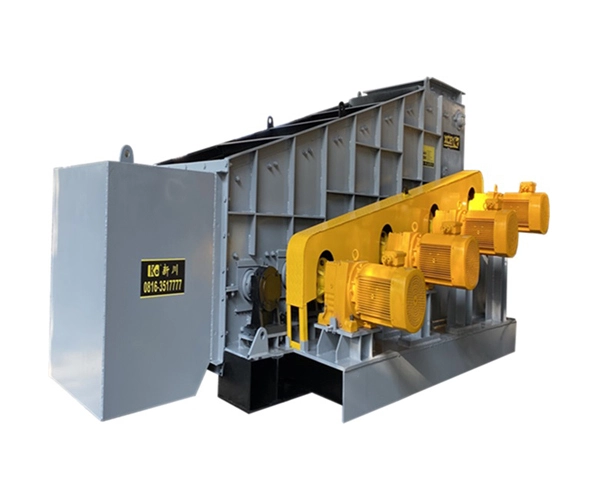

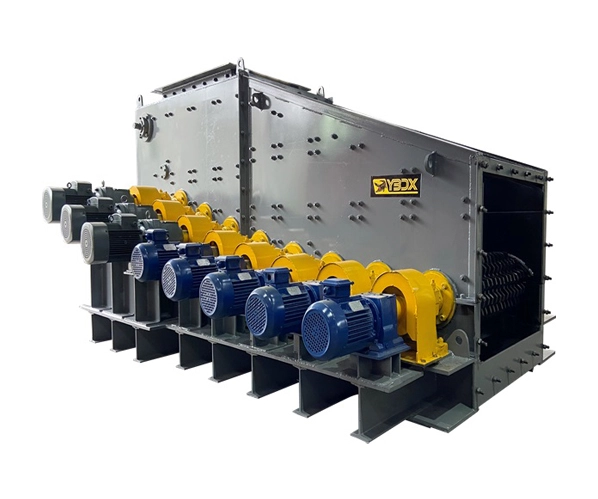

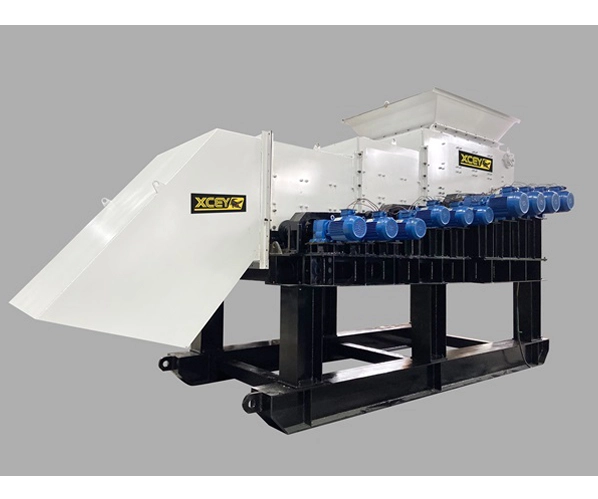

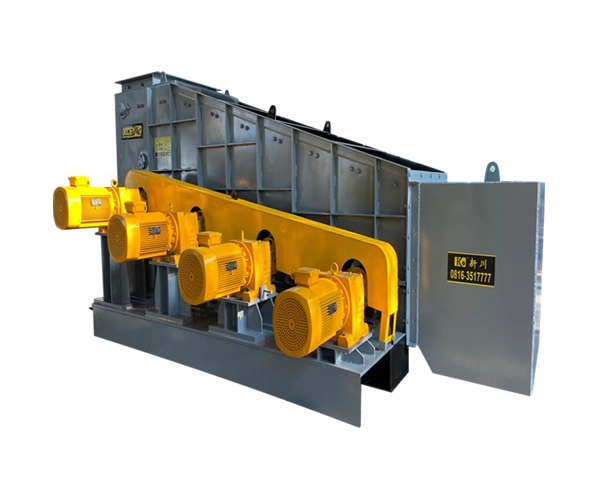

BENO Disc Screen uses a single motor and a single axis to rotate and push the material forward along the roller surface. The material is quickly scattered and stratified on the inclined roller surface. Particles smaller than the roller gap fall through the gap, while particles larger than the roller gap continue to move forward and fall into the next link.
Model | Roll width（mm） | Number of shafts | Throughput（t/h） | Length of feed size（mm） | Roller gap（mm） | Sieving efficiency（%） | Installed power | Flap drive push rod (Electro-hydraulic user optional) | |||
Power（kw/unit） | Quantity | Model | Thrust（kgf） | Power（w） | |||||||
XCDRS1008 | 1000 | 8 | 200-550 | ≤500 | 25-100 | 80 | 2-4 | 8 | DT or DTY | 300 | 370 |
XCDRS1010 | 10 | 240-700 | 85 | 3-5.5 | 10 | ||||||
XCDRS1012 | 12 | 300-850 | 90 | 12 | |||||||
XCDRS1408 | 1400 | 8 | 420-1000 | ≤700 | 35-120 | 80 | 8 | DT or DTY | 500 | 750 | |
XCDRS1410 | 10 | 520-1280 | 85 | 3-7.5 | 10 | ||||||
XCDRS1412 | 12 | 650-1500 | 90 | 12 | |||||||
XCDRS1808 | 1800 | 8 | 580-1350 | ≤900 | 40-130 | 80 | 4-11 | 8 | DT or DTY | 700 | 1100 |
XCDRS1810 | 10 | 730-1680 | 85 | 10 | |||||||
XCDRS1812 | 12 | 900-2100 | 90 | 12 | |||||||
✬XCDRS1815 | 15 | 1100-2600 | 90 | 5.5-15 | 15 | ||||||
✬XCDRS1818 | 18 | 1400-3300 | 18 | ||||||||
✬XCDRS2010-18 | 2000 | 10-18 | 1700-5000 | ≤1000 | 60-200 | 90 | 15-37 | 10-18 | DT or DTY | 1000 | 1500 |
✬XCDRS3010-18 | 3000 | 10-18 | 2500-7500 | ≤1500 | 90-260 | 90 | 15-45 | 10-18 | |||
1. The roller shaft is designed with an inclination angle and the roller surface has a segmented ladder structure. Select the appropriate inclination angle according to the actual situation of the mineral and the use requirements to make the material move in a parabolic motion.
2. Using a single machine to rotate on a single axis, it can realize a single machine start and stop, and a comprehensive alarm protection mechanism for one machine.
3. A cleaning device is added to provide safety protection and prevent blockage.
4. The rollers are made of alloy wear-resistant special steel, which is strong and durable and easy to assemble, replace and repair.
5. BENO Disc Screen has wide adaptability to the working environment, especially for screening minerals with high moisture content.
6. There is almost no vibration, which is more advantageous for floor-type installation solutions.
1. Mining industry
2. Metallurgical industry
3. Building materials industry
4. Coal industry
5. Chemical industry
