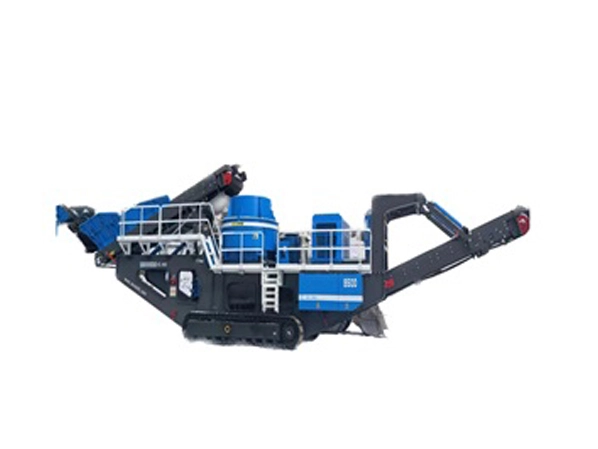

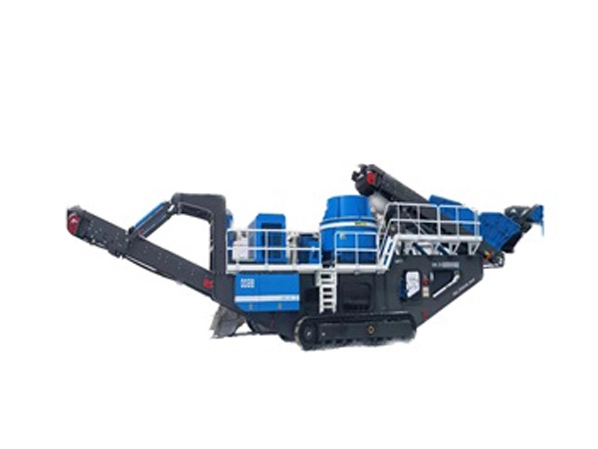

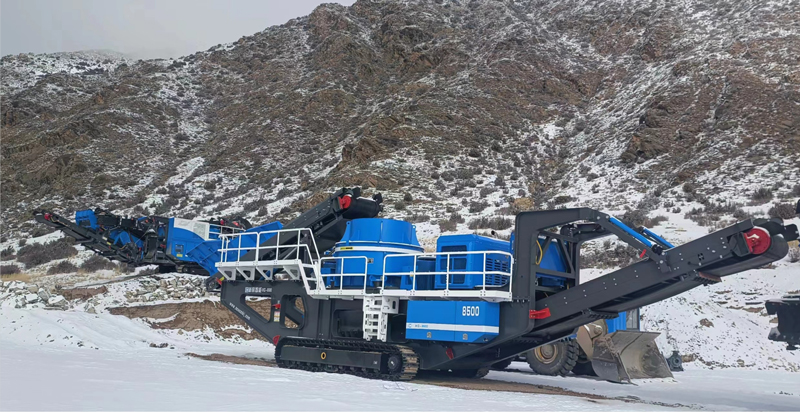

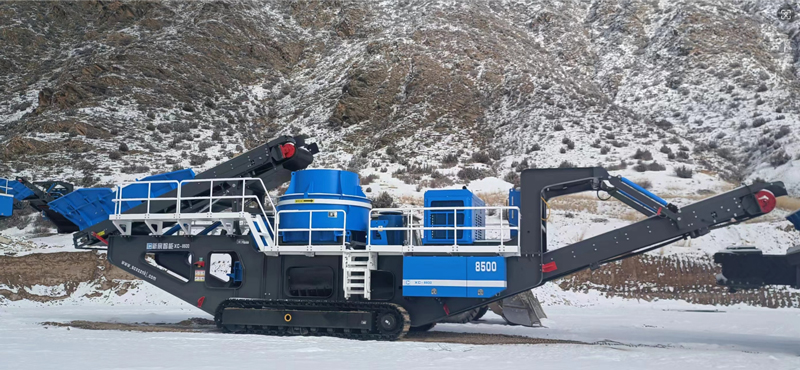

The XC-8500 Crawler Vertical Shaft Impact Mobile Crushing Station is designed to crush and shape various hard and abrasive materials efficiently and effectively. Its operating principle involves using a powerful motor to drive the crushing equipment, which uses the impact force to break down the materials into smaller size particles.
Maximum feed size: 60mm
Production capacity: 200-480TPH
Power: 418.5kw
XC-8500 Crawler Vertical Shaft Impact Mobile Crushing Station can process natural stones such as cobblestones, granite, bauxite, etc. It can also process steel slag, concrete, cement and other construction residues. The finished material is cube-shaped with low needle and flake content and almost no internal cracks.
Modular design, easy replacement, high fatigue resistance and stronger impact resistance.
The main crusher adopts an automatic control system with fully automatic crushing process control, one-button automatic start and advanced fault diagnosis functions. It can realize overload protection for crushing operations and automatically shut down when the oil pressure is insufficient or there is no oil.
Model | XC-8500 |
Total length (mm) | 18400 |
Total Width (mm) | 3150 |
Total height (mm) | 3900 |
Feed size (mm) | 60 |
Volume (m³) | 5.4 |
Feeding height (mm) | 3150 |
Discharging height (mm) | 3170 |
Drive mode | All electric |
Power (kw) | 418.5 |
Weight (kg) | About 40000 |
