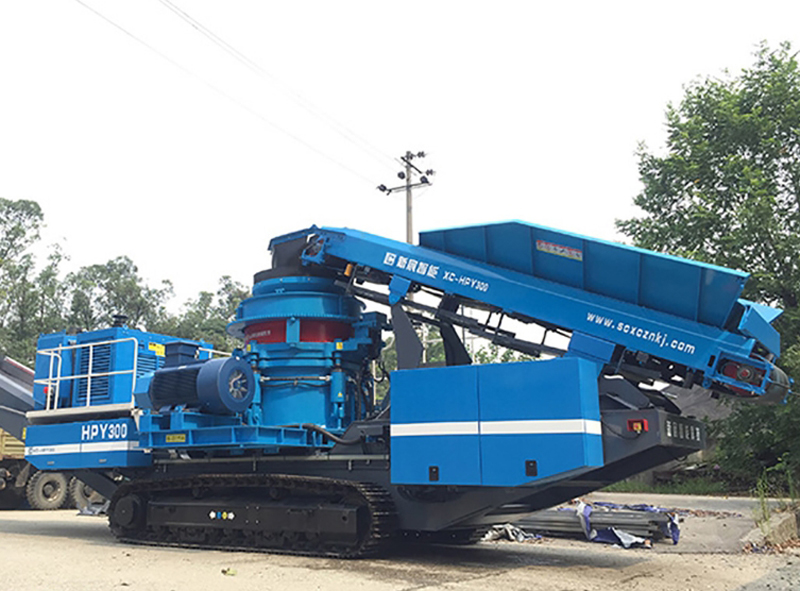

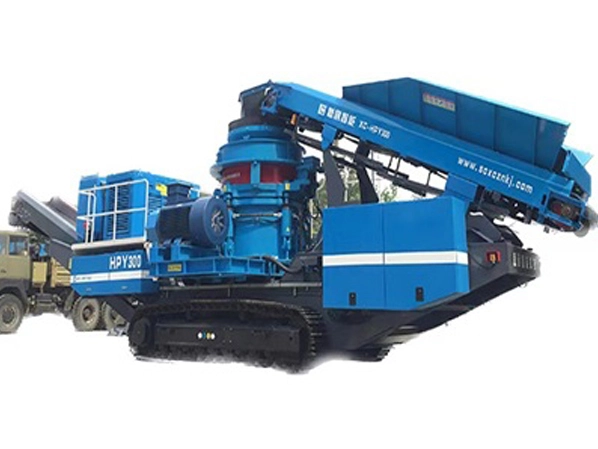

The XC-300 Crawler Cone Mobile Crushing Station adopts composite spring cone crusher，which can handle medium to high hardness and highly corrosive stones. XC-300 Crawler Cone Mobile Crushing Station is mainly composed of feeding device, cone host, traveling power unit, fuel tank, return screen, discharging conveyor and control box.
Based on the principle of material lamination and crushing and the wear characteristics of the cavity wall, the cavity shape is designed as a curve, which can ensure the XC-300 Crawler Cone Mobile Crushing Station's goals of large mass production, high product quality, and low wear costs.
The automatic control system has fully automatic crushing process control, one-button automatic start and advanced fault diagnosis functions.
The discharged particle shape is better than that of jaw crusher.
Model | XC-300 |
Total length (mm) | 19300 |
Total Width (mm) | 3650 |
Total height (mm) | 3750 |
Feed size (mm) | 35-185 |
Feed volume (m³) | 4.5 |
Feeding height (mm) | 3100 |
Discharging height (mm) | 3200 |
Drive mode | All electric |
Power (kw) | 305 |
Weight (kg) | About 55000 |

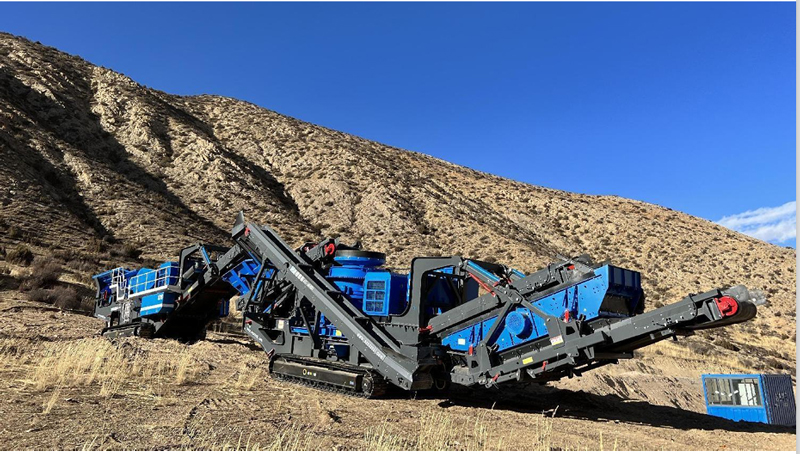

Crushing and screening of aggregate materials
Recycling of construction waste
Crushing of mining materials
Production of sand and gravel
