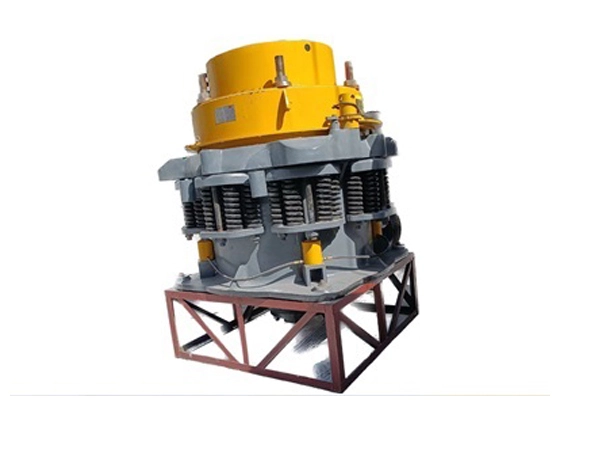

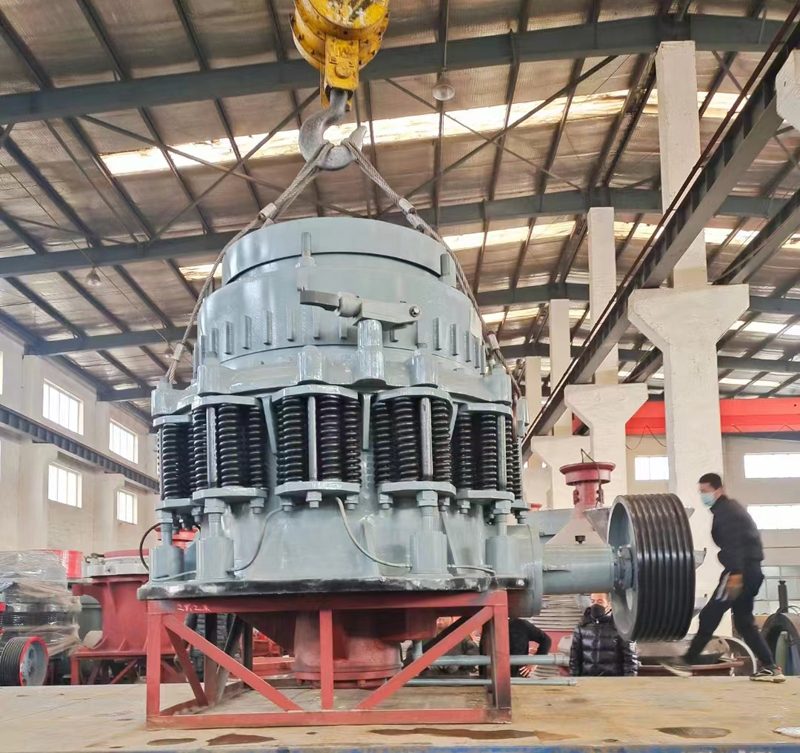

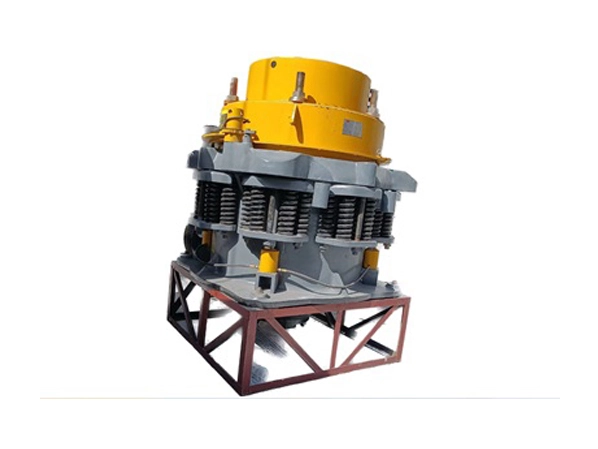

Spring Cone Crusher, also known as the Symons Cone Crusher, is a revolutionary type of crusher for crushing materials. The unique feature of Spring Cone Crusher is its ability to crush materials with high compression ratio. It achieves this through the use of a combination of high-quality steel components, advanced manufacturing processes and technology. This in turn ensures that the crushing process is efficient and effective, reducing the overall cost and time of crushing material.

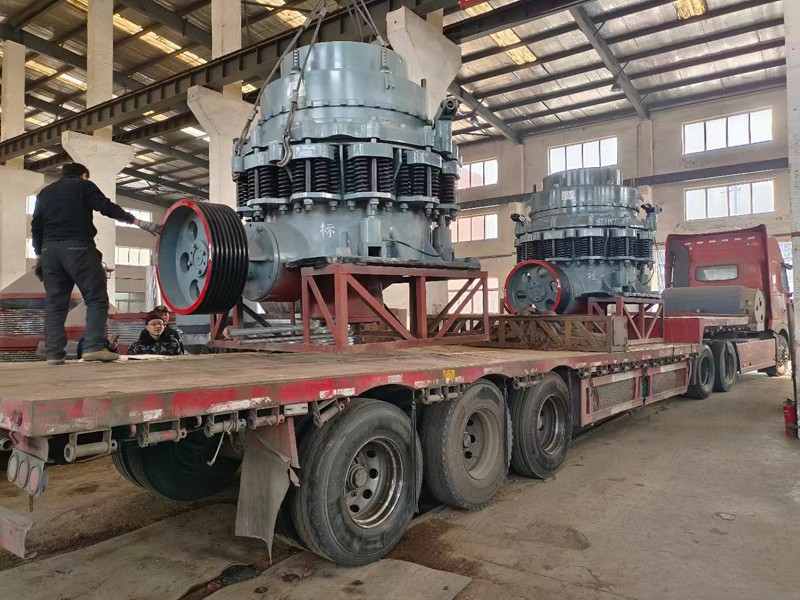

High Efficiency: BENO Spring Cone Crusher utilizes advanced technology to efficiently crush large rocks and ores, thereby increasing the machine’s capacity. Its high efficiency not only boosts productivity but also reduces energy consumption and operating costs.
Reliable Performance: BENO Spring Cone Crusher is built with high-quality components and a durable structure, ensuring consistent and efficient performance over a long period, minimizing the risk of breakdowns and malfunctions.
Easy Maintenance: Designed with user-friendly maintenance features, the BENO Spring Cone Crusher allows for quick and efficient maintenance, reducing downtime and extending the machine’s lifespan.
Versatility: BENO Spring Cone Crusher is highly versatile and can be used in various applications, including mining, construction, and demolition. It is particularly suitable for crushing hard and medium-hard materials.
Large Crushing Ratio: The BENO Spring Cone Crusher offers a large crushing ratio, ensuring that the crushed materials are suitable for downstream processes, thereby maximizing productivity.
Consistent High Quality: The BENO Spring Cone Crusher consistently produces high-quality final products, ensuring customer satisfaction.
High Capacity: With its high capacity, the BENO Spring Cone Crusher can process more material in a shorter time, enhancing production efficiency.
Model | Crushing cone diameter (mm) | Maximum feed particle size (mm) | Discharge opening size (mm) | Processing power (TPH) | Power (kw) | Number of spindle swings (r/min) |
PYC900 | 900 | 115 | 30-50 | 50-90 | 55 | 333 |
PYZ900 | 900 | 60 | 15-30 | 20-65 | 55 | 333 |
PYX900 | 900 | 50 | 5-15 | 15-50 | 55 | 333 |
PYC1200 | 1200 | 145 | 30-50 | 110-168 | 110 | 300 |
PYZ1200 | 1200 | 100 | 20-50 | 60-135 | 110 | 300 |
PYX1200 | 1200 | 50 | 10-20 | 42-105 | 110 | 300 |
PYC1750 | 1750 | 215 | 60-100 | 400-600 | 180 | 245 |
PYZ1750 | 1750 | 185 | 30-50 | 200-350 | 180 | 245 |
PYX1750 | 1750 | 85 | 15-30 | 120-200 | 180 | 245 |
PYC2200 | 2200 | 300 | 100-200 | 650-1000 | 330 | 220 |
PYZ2200 | 2200 | 230 | 70-150 | 480-800 | 330 | 220 |
PYX2200 | 2200 | 100 | 35-60 | 320-450 | 330 | 220 |
