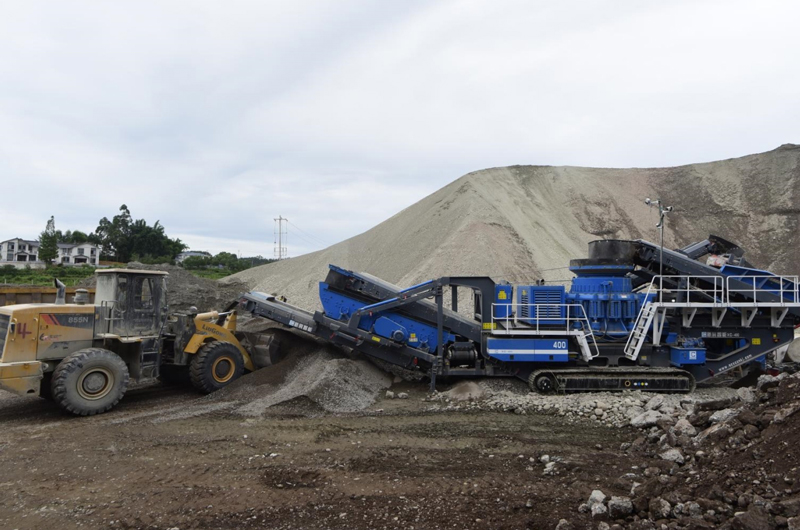

The main unit of the XC-400 Crawler Cone Mobile Crushing Station uses one of the most widely used and best-selling products in the international market - composite spring cone crusher. The composite spring cone crusher has a strong processing capacity, and the crawler-type movement method constitutes the XC-400 Crawler Cone Mobile Crushing Station.
Maximum feed size: 215mm
Production capacity: 100-350TPH
Power: 278kw
Model | XC-400 |
Total length (mm) | 19500 |
Total Width (mm) | 3822 |
Total height (mm) | 3750 |
Feeding height (mm) | 2900 |
Volume (m³) | 5.4 |
Discharging height (mm) | 3240 |
Screen size (mm) | 4000*1500 |
Drive mode | All electric |
Power (kw) | 278 |
Weight (kg) | About 65000 |

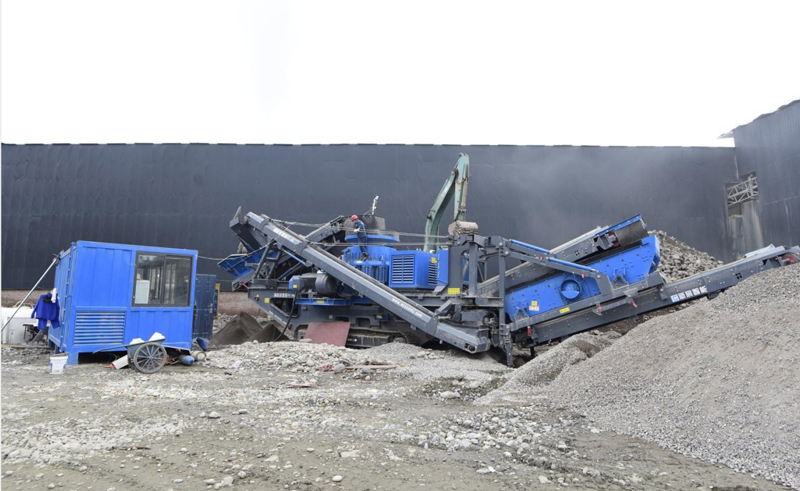

The XC-400 Crawler Cone Mobile Crushing Station is ideal for crushing and screening all kinds of aggregate materials, such as limestone, granite, and basalt. It can be used as a standalone production equipment or combined with other equipment to form a complete crushing and screening system.
The XC-400 Crawler Cone Mobile Crushing Station is ideal for crushing various types of mining materials, such as iron ore, copper ore, and gold ore. It can be used in open-pit mining or underground mining, and can greatly improve the efficiency of the entire mining production process.
The XC-400 Crawler Cone Mobile Crushing Station can be used to produce high-quality sand and gravel materials, which are widely used in the construction industry. It can crush and shape the materials to meet the requirements of different construction projects.
With the increasing emphasis on environmental protection, the recycling of construction waste has become an important issue. The XC-400 Crawler Cone Mobile Crushing Station can crush and screen construction waste, and then reuse the crushed materials for construction purposes.
