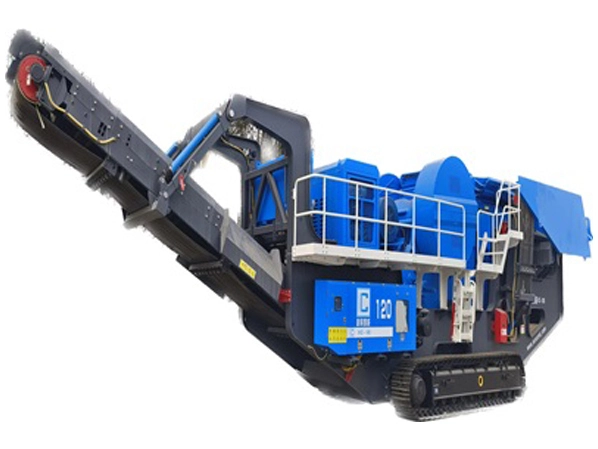

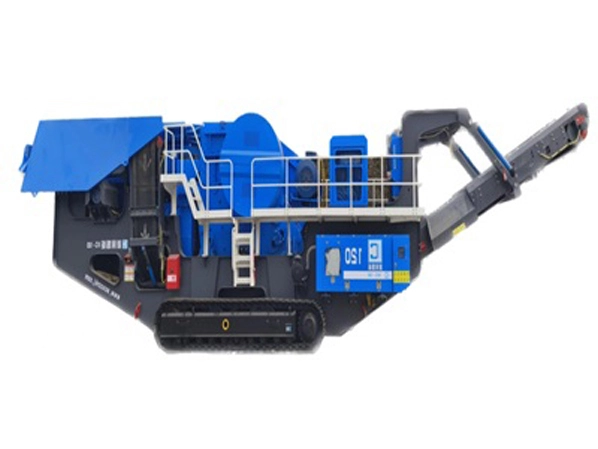

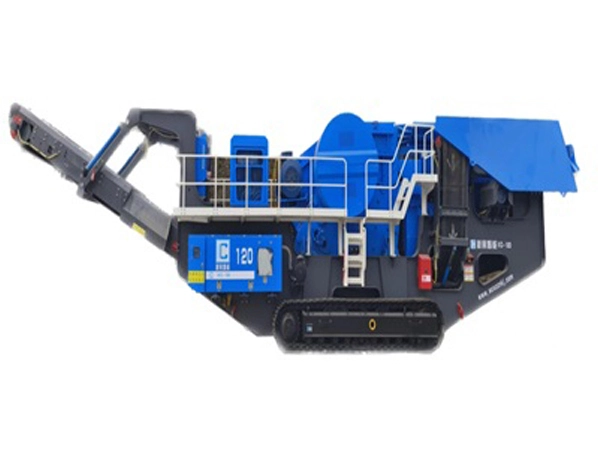

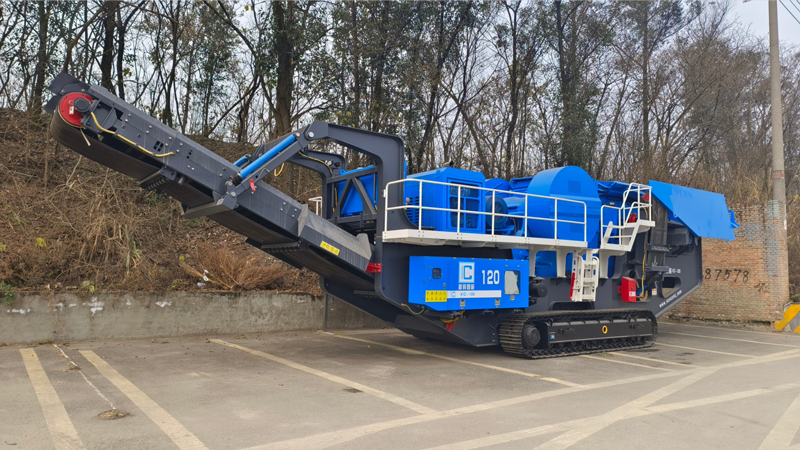

Crawler Jaw Mobile Crushing Station is a high-efficiency and versatile crushing equipment that is movable by crawler drive mode. It is designed to crush various types of materials, from hard rock to recycled materials, and features a compact structure, reliable performance, and easy maintenance.
Diesel as power source.
The traveling engine provides strong power for moving equipment or transferring sites.
Equipped with a large-capacity feeding device to ensure uniform feeding.
Efficient separation of metal products. The iron remover (optional) reduces clogging caused by metal products and damage to the conveyor belt.
The control box is convenient for operation and quick fault diagnosis, and uses the menu-oriented touch screen control concept.
Model | XC-120 |
Total length (mm) | 16600 |
Total Width (mm) | 3486 |
Total height (mm) | 3880 |
Inlet size (mm) | 1200*870 |
Volume (m³) | 7.5 |
Feeding height (mm) | 4500 |
Discharging height (mm) | 3850 |
Drive mode | All electric |
Power (kw) | 199.5 |
Weight (kg) | About 67000 |
