What is the operating principle of BENO XCE Series Jaw Crusher?

The working principle of BENO XCE Series Jaw Crusher is relatively simple. It consists of a fixed jaw plate and a movable jaw plate. When the two jaws are close to each other, the material is crushed between them. The fixed jaw is fixed and acts as an anchor for the swinging jaw. The swing jaw moves forward and backward to break the material. Materials enter BENO XCE Series Jaw Crusher through the funnel-shaped feed port. The size of the opening determines the maximum size of material that can be fed into the crusher. Materials enter the crusher in a downward and forward motion, ensuring the crushing and even discharge of materials.

What is BENO XCE Series Jaw Crusher used for?

BENO XCE Series Jaw Crusher for crushing various materials in industries such as mining, construction, and smelting. It is commonly used to reduce the size of large rocks or ore into smaller and more manageable pieces, suitable for further processing or utilization in various industrial applications.

How long is the production lead time for a BENO XCE Series Jaw Crusher?

Customized XCE series jaw crusher takes 30-45 days, depending on specific needs.

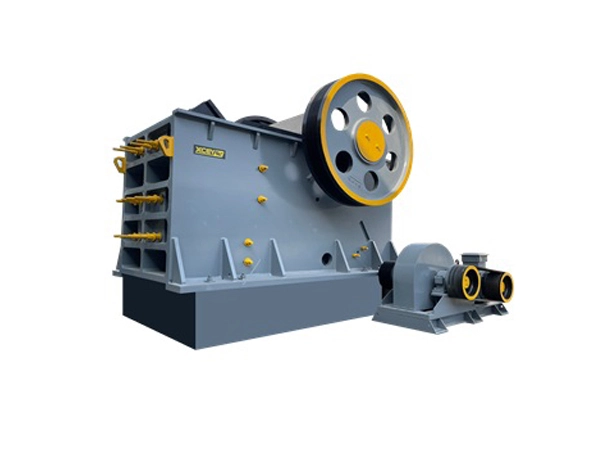

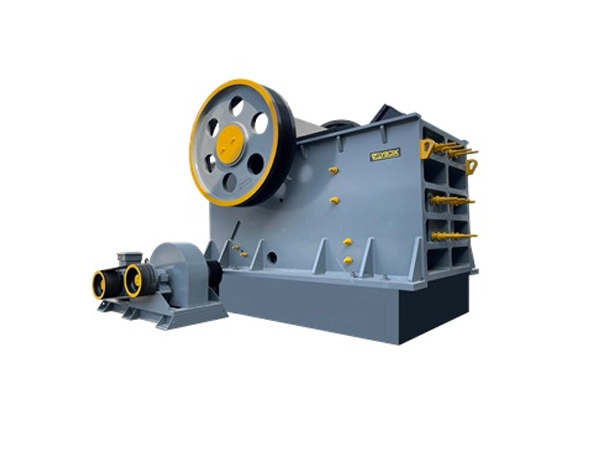

Types Of Quality XCE Series Concrete Jaw Crusher For Sale

Name: XCE Series Jaw Crusher
Brand: Sichuan BENO Energy Conservation and Environmental Protection Technology Co., Ltd.

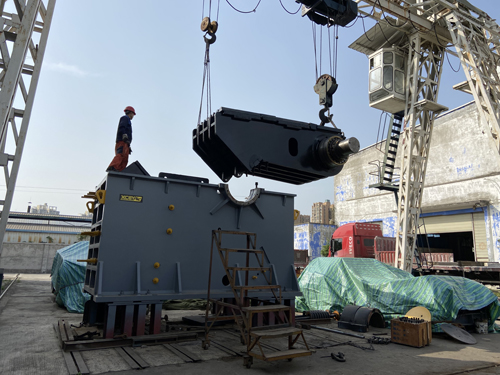

Advantages Of XCE Series Jaw Crusher

simple structure
high crushing efficiency
adjustable crushing particle size
strong compressive strength
wide range of applications

Advantages Of XCE Series Jaw Crusher

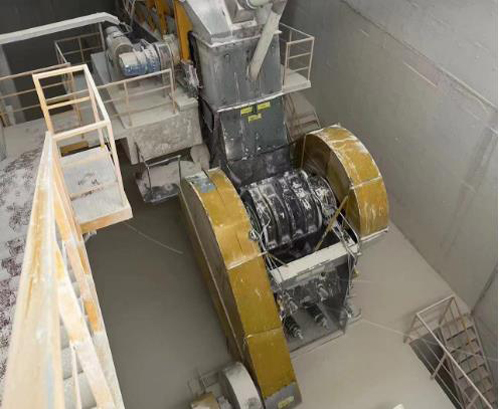

Application Of XCE Series Jaw Crusher

Mining quarry--- BENO XCE Series Jaw Crusher is suitable for mining quarry, used to crush and finely crush ore, sand, stone and other raw materials to meet the requirements of subsequent processing.
Construction sites--- At construction sites, BENO XCE Series Jaw Crushers can be used to crush and reuse construction waste, concrete fragments, bricks, etc. for recycled aggregate or recycling.
Highway and bridge construction--- BENO XCE Series Jaw Crusher can crush roadbed materials, gravel, asphalt and other raw materials into the required particle size, and can be used as road and roadbed materials in the construction of highways, bridges and other infrastructure.
Metallurgy and coal industries--- BENO XCE Series Jaw Crushers can be used in the metallurgy and coal industries to crush ore, metallurgical slag, coal and other raw materials to meet the needs of subsequent mineral processing, smelting, and combustion.

Application Of XCE Series Jaw Crusher

Specifications Of XCE Series Jaw Crusher

Specification	Size of feed opening（mm）	Maximum feed size（mm）	Discharge port adjustment range（mm）	Production capacity（t/h）	Motor power （kw）	Rotational Speed （r/min）	Weight（t）
XCE series (JB/T1388-2015 coarse crushing type) jaw crusher
XCE2540	250*400	210	20-80	5-20	15	300	2.8
XCE4060	400*600	340	40-100	16-54	30	275	6.5
XCE5075	500*750	425	50-100	30-85	55	275	10.3
☆XCE40108	400*1080	340	40-100	30-100	75or37/37	250	10.8
☆XCE5013	500*1300	425	50-120	50-150	90or45/45	275	15.6
☆XCE5015	500*1500	425	50-120	60-185	110or55/55	275	18.3
☆XCE5712	570*1200	475	50-130	80-210	132or55/75	275	17.8
XCE6090	600*900	500	65-160	50-150	75	250	15.5
XCE75106	750*1060	630	80-140	50-208	110	250	27.5
XCE9012	900*1200	750	95-165	100-238	132	200	50
XCE1012	1000*1200	850	105-175	295-350	160	200	52
XCE1215	1200*1500	1020	150-300	300-800	220	180	100.8
XCE1518	1500*1800	1200	165-325	450-1200	355	180	133
XCE1621	1600*2100	1250	200-350	500-1350	400	160	169
XCE1821	1800*2100	1500	290-400	600-1600	450	160	172

Products

Q & A Of XCE Series Jaw Crusher

What is the operating principle of BENO XCE Series Jaw Crusher?

The working principle of BENO XCE Series Jaw Crusher is relatively simple. It consists of a fixed jaw plate and a movable jaw plate. When the two jaws are close to each other, the material is crushed between them. The fixed jaw is fixed and acts as an anchor for the swinging jaw. The swing jaw moves forward and backward to break the material. Materials enter BENO XCE Series Jaw Crusher through the funnel-shaped feed port. The size of the opening determines the maximum size of material that can be fed into the crusher. Materials enter the crusher in a downward and forward motion, ensuring the crushing and even discharge of materials.
What is BENO XCE Series Jaw Crusher used for?

BENO XCE Series Jaw Crusher for crushing various materials in industries such as mining, construction, and smelting. It is commonly used to reduce the size of large rocks or ore into smaller and more manageable pieces, suitable for further processing or utilization in various industrial applications.
How long is the production lead time for a BENO XCE Series Jaw Crusher?

Customized XCE series jaw crusher takes 30-45 days, depending on specific needs.

DO YOU NEED HIGH-QUALITY MINERAL PROCESSING EQUIPMENT?



Contact With Us:

E-mail: benoecepgroup@gmail.com


Have a Questions? Call Us:

028-85939269


Add:

No.14, 13/F, Building T3, Xiangnian Plaza, No.88 Jitai 5th Road, Gaoxin District, Chengdu, Sichuan

Please contact BENO for your mineral processing solutions!

Related Jaw Crusher

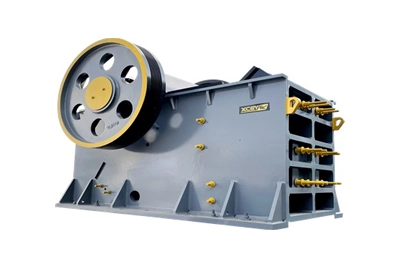

XCEX Series Jaw Crusher

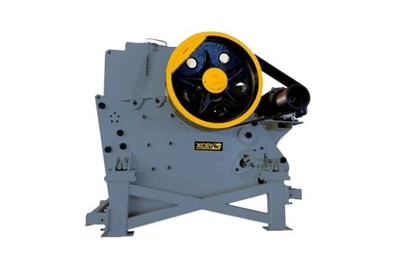

XCEV Series Jaw Crusher
