How does BENO XCBW Series Apron Plate Feeder work?

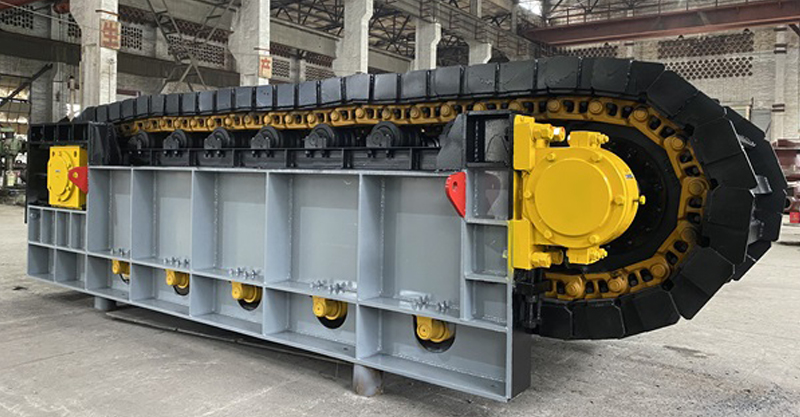

BENO XCBW Series Apron Plate Feeders work by using a series of overlapping metal plates, called aprons, that are attached to a conveyor chain. The aprons are driven by sprockets and move in a linear motion. As the aprons move, they drag and carry the bulk material along the feeder. The material is discharged at the end of the BENO XCBW Series Apron Plate Feeder, either directly onto a conveyor belt or into another processing equipment. The speed of the BENO XCBW Series Apron Plate Feeder can be adjusted to control the flow rate of the material, ensuring a consistent and regulated feed.

What is the difference between a conveyor and an apron feeder?

The main difference between a conveyor and an apron feeder lies in their design and function. A conveyor is a general term for a device used to transport materials from one location to another, typically using a belt, chain, or other moving mechanism. It is commonly used for continuous material handling in various industries. BENO XCBW Series Apron Plate Feeder is a specific type of conveyor that is designed to handle heavy, abrasive, and large-sized materials. It uses overlapping metal plates, called aprons, that are connected to a conveyor chain to drag and carry the material along the feeder. BENO XCBW Series Apron Plate Feeders are commonly used in industries such as mining and aggregate, where rugged and reliable feeding of bulk materials is required.

How long is the production cycle for a customized BENO XCBW Series Apron Plate Feeder?

40-60 days. It depends on the specific situation.

China Quality Apron Plate Feeder Wholesale Supplier/ Factory

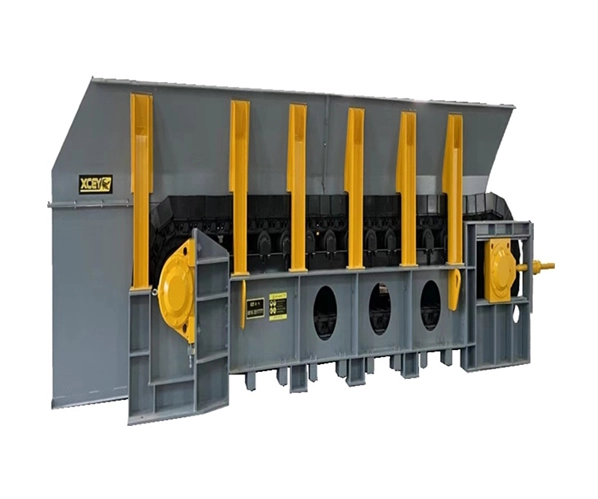

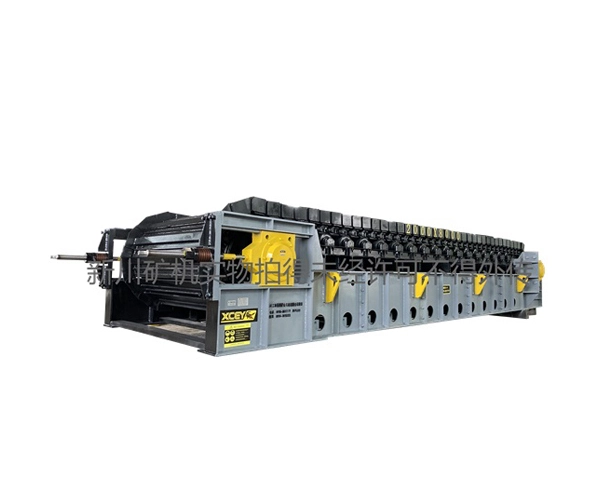

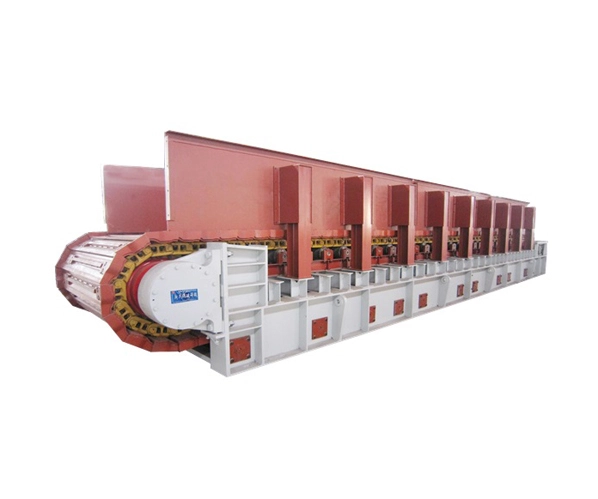

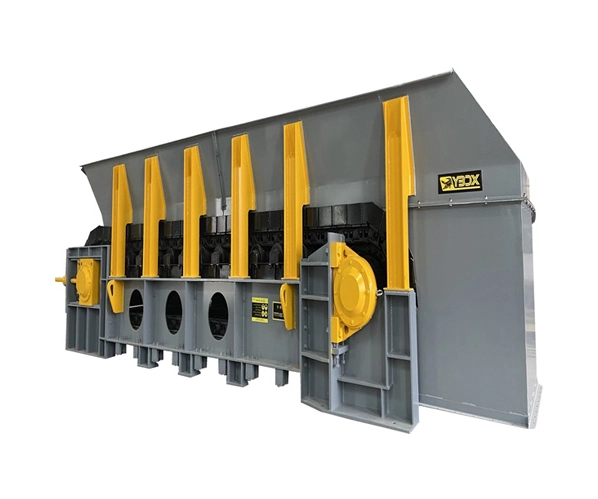

Name: XCBW Series Apron Plate Feeder
Brand: Sichuan BENO Energy Conservation and Environmental Protection Technology Co., Ltd.

Specifications Of XCBW Series Apron Plate Feeder

Specification	Width of chain plate（mm）	Length of chain plate（mm）	Maximum feed Feed side length （mm）	Production capacity（t/h）	Chain speed （r/min）	Motor power （kw）	Weight（t）
XCBW8005	800	5000	≤400	50-150	0.05-0.2	7.5	13.8
XCBW1006	1000	6000	≤450	70-200	0.05-0.2	11	17.5
XCBW1008		8000				15	20
XCBW1010		10000				15	22.8
XCBW1013		13000				18.5	26.5
XCBW1206	1200	6000	≤650	120-280	0.05-0.2	18.5	21
XCBW1208		8000				18.5	23.8
XCBW1210		10000				22	25.6
XCBW1212		12000				22	28.5
XCBW1506	1500	6000	≤800	200-600	0.05-0.2	22	26.5
XCBW1508		8000				22	29.5
XCBW1513		13000				30	36.8
XCBW1608	1600	8000	≤850	220-680	0.05-0.2	37	31.3
XCBW1810	1800	10000	≤850	280-820	0.05-0.2		38.6
XCBW2008	2000	8000	≤1000	330-980	0.05-0.2	45	42.8
XCBW2010	2000	10000	≤1000	330-980	0.05-0.2	45	46.3
XCBW2210	2200	10000	≤1100	350-1180	0.05-0.2	45	51.5
XCBW2310	2300	10000	≤1100	400-1300	0.05-0.2	55	56.8
XCBW2412	2400	12000	≤1500	500-1450	--	55×2	65.5
XCBW3410	3400	10000	≤2000	1200-2900	--	75×2	93

Advantages Of XCBW Series Apron Plate Feeder

1. High load-bearing capacity

2. Stable and reliable

3. Wide application

4. Efficient transportation

Advantages Of XCBW Series Apron Plate Feeder

Application Of XCBW Series Apron Plate Feeder

1. Mines and quarries. Used to transport large and heavy materials such as ore, coal, and stone to meet the material supply needs in the mining and quarrying process.

2. Metallurgical industry. Used to transport iron ore, coke, limestone and other heavy materials that need to be processed in the metallurgical process to ensure continuous feeding and production stability.

3. Building materials. BENO XCBW Series Apron Plate Feeder is suitable for transporting cement, sand, concrete and other building materials to meet the material supply needs of construction sites or concrete mixing stations.

4. Electric power industry. Used to transport coal, limestone and other fuels and raw materials to ensure the continuity of fuel supply and production of power plants.

Application Of XCBW Series Apron Plate Feeder

Products

Q & A Of XCBW Series Apron Plate Feeder

How does BENO XCBW Series Apron Plate Feeder work?

BENO XCBW Series Apron Plate Feeders work by using a series of overlapping metal plates, called aprons, that are attached to a conveyor chain. The aprons are driven by sprockets and move in a linear motion. As the aprons move, they drag and carry the bulk material along the feeder. The material is discharged at the end of the BENO XCBW Series Apron Plate Feeder, either directly onto a conveyor belt or into another processing equipment. The speed of the BENO XCBW Series Apron Plate Feeder can be adjusted to control the flow rate of the material, ensuring a consistent and regulated feed.
What is the difference between a conveyor and an apron feeder?

The main difference between a conveyor and an apron feeder lies in their design and function. A conveyor is a general term for a device used to transport materials from one location to another, typically using a belt, chain, or other moving mechanism. It is commonly used for continuous material handling in various industries. BENO XCBW Series Apron Plate Feeder is a specific type of conveyor that is designed to handle heavy, abrasive, and large-sized materials. It uses overlapping metal plates, called aprons, that are connected to a conveyor chain to drag and carry the material along the feeder. BENO XCBW Series Apron Plate Feeders are commonly used in industries such as mining and aggregate, where rugged and reliable feeding of bulk materials is required.
How long is the production cycle for a customized BENO XCBW Series Apron Plate Feeder?

40-60 days. It depends on the specific situation.
